Shengli Centrifuge Manufacturing
PSB series flat plate manual upper unloading centrifuge
Structure and features
The centrifuges are all filtering equipment with closed top discharge and intermittent operation. The material is added to the rotating drum from the feed tube on the closed casing. Under the action of the centrifugal force field, the liquid phase passes through the filter medium and is discharged out of the machine. It has the characteristics of stable operation, simple operation, and the feeding, washing, and dehydration are carried out in a closed state.
Without foundation installation, the traditional three-leg suspension structure is cancelled, the installation process is simplified, the design is reasonable, the structure is novel and concise, the appearance is beautiful, and the cleaning is convenient. The basic plate is the work operation platform, which is convenient for operation and maintenance.
The drum, casing, and base plate are all polished; all fasteners are made of stainless steel; transmission parts are closed by stainless steel; seals are made of silicon rubber, equipped with a cleaning spray system, and the whole machine meets GMP sanitary requirements.
Imported high-viscosity liquid damping agent type vibration isolator connected with the flat plate makes the energy generated by the centrifuge due to vibration be absorbed by the vibration isolator, and there is no vibration interference to the foundation ground and surrounding equipment.
The casing is equipped with a full-open and large flip cover, which is convenient for unloading and has good airtightness. It is especially suitable for the solid-liquid separation of toxic and harmful media. It adopts explosion-proof motor frequency conversion drive, anti-static triangle belt, and nitrogen filling protection. It is suitable for flammable and explosive materials. The solid-liquid separation.
The integrity of confidentiality, explosion-proof, and cleanliness are good.

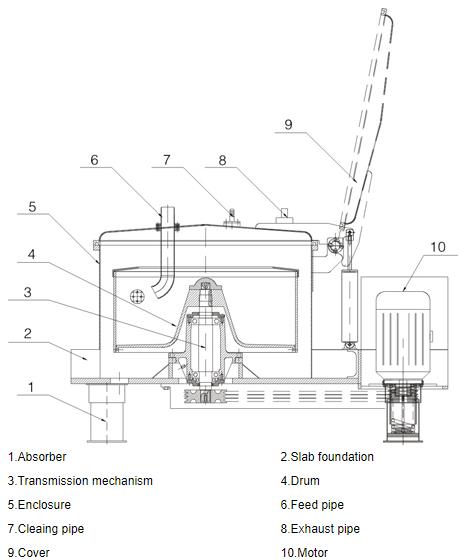

Structure chart
.jpg)
The main technical parameters
| Item | Model | |||||||
| PSB300 | PSB450 | PSB600 | PSB800 | PSB1000 | PSB1200 | PSB1250 | PSB1500 | |
| Drum diameter(mm) | 300 | 450 | 600 | 800 | 1000 | 1200 | 1250 | 1500 |
| Drum working highly(mm) | 150 | 200 | 280 | 400 | 450 | 480 | 550 | 680 |
| Drum working volume(L) | 5 | 20 | 40 | 100 | 160 | 270 | 360 | 600 |
| Maximum loading limit(kg) | 7.5 | 30 | 60 | 140 | 215 | 350 | 480 | 800 |
| Durm speed(r/min) | 2200 | 1750/1900 | 1500/1750 | 1200/1500 | 1000/1200 | 1000/1200 | 1000/1200 | 850 |
| Filtration area(m2) | 0.14 | 0.28 | 0.52 | 1.0 | 1.41 | 1.81 | 2.16 | 3.2 |
| Separation factor(ω2r/ ɡ) | 812 | 770/910 | 755/1027 | 645/1006 | 560/804 | 670/965 | 700/1006 | 606 |
| Motor power(kw) | 1.1 | 1.5/2.2 | 3/4 | 5.5/7.5 | 7.5/11 | 15/18.5 | 18.5/22 | 30 |
| Overall weight(kg) | 200 | 500 | 1000 | 1600 | 2000 | 3000 | 3200 | 6500 |
| Physical size(mm) | 850×600×600 | 1050×800×720 | 1300×1000×1200 | 1700×1300×1350 | 1800×1400×1400 | 2350×1900×2700 | 2800×2100×2700 | 2600×2200×1850 |
