Shengli Centrifuge Manufacturing
LWL series horizontal scrool discharge screen centrifuge
Features and uses
LWL series is horizontal scroll discharge screen centrifuge with features such as stable operation, good cleaning effect, high economic efficiency, high handling capacity, etc. It can be used in chemical, pharmaceutical, food, metallurgy, mine and other industries for solid-liquid separation.
Features
1. Continuous operation, large handling capacity.
2. Various types of drum, wide range of application.
3. Reasonable power, low energy consumption.
4. The parts contacting materials are manufactured with stainless steel.
5. Adopts imported bearing and sealing element, and independent circulating lubricating system.
6. The sealed enclosure is protective to operator and environment.
7. Small volume, convenient installation.
8. Safe and reliable operation.

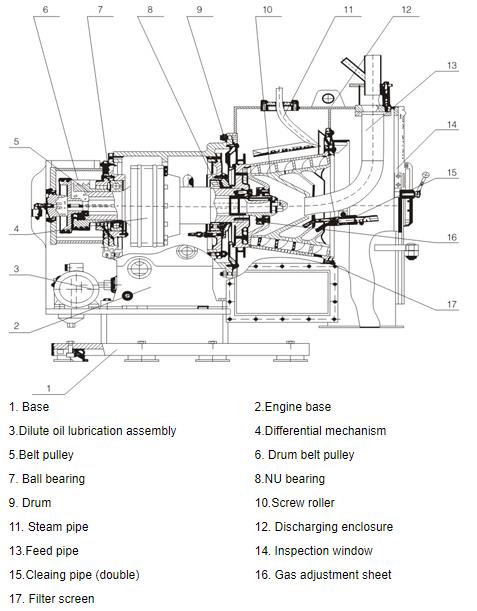

Structure chart
.jpg)
Main technical parameters
| Item | Model | ||||
| LWL350 | LWL450 | LWL530 | LWL630 | LWL800 | |
| Drum diameter(mm) | 350 | 450 | 530 | 630 | 800 |
| Durm speed(r/min) | 3000 | 2500 | 2000 | 1800 | 1500 |
| Separation factor(ω2r/ ɡ) | 1765 | 1575 | 1190 | 1140 | 1000 |
| Production Capacity(m3/h) | 1-5 | 2-8 | 3-10 | 5-15 | 8-20 |
| Motor power(kw) | 11 | 22 | 30 | 37 | 55 |
| Overall weight(kg) | 1200 | 2000 | 2800 | 3500 | 4500 |
| Physical size(mm) | 1460×1210×1210 | 1800×1420×1390 | 1855×1575×1340 | 2100×1430×1530 | 2500×2200×1800 |
